Installation Manual EM-3D Version 9.0 Jan. 23, 2001

System Description

SDS EM-3D is a microprocessor based, digital, programmable EFI system intended to control port type injectors. EM-3 allows you to access all points in the engine operating map with the engine running and alter them according to your own specific needs utilizing a hand-held LCD programming box. As such, the system can be used on virtually any engine type or displacement.

Please read the entire manual before attempting any hookup or running of the system. If you are installing an E or F system, you will need to refer to the supplemental manuals for those systems.

Theory of Operation

Air temperature, water temperature, manifold pressure, throttle position and rpm are all measured and taken into account by the ECU which determines how often and how long the injectors remain open. The ECU generates a precise triggering pulse which is fed to the injectors. The manifold pressure or throttle position value multiplied by the rpm value determines the primary pulse width.

Fuel System

In order for any EFI system to function properly, an adequate supply of fuel at the proper pressure must be present at the injectors. This cannot be over stressed. Problems are invariably blamed on the electronics when in fact 99% of all running problems are due to mechanical deficiencies.

Vehicles with Factory EFI

If horsepower is similar to factory outputs, fuel tanks, pumps, lines and injectors should be adequate when installing EM-3. When increased power is desired on factory equipped engines, some or all of the fuel system components may have to be upgraded.

Vehicles without Factory EFI

We recommend that vehicles originally fitted with carburetors have a fuel system installed as shown in the following schematic:

Two fuel pumps are required. One from the main fuel tank to the surge tank may be of the low pressure variety but must be capable of keeping the surge tank full during full throttle operation. Fuel lines should be at least 8mm (5/16 in.) ID on engines up to 400 hp and 10mm (3/8 in.) On engines over 400 hp. The fuel injection pump must be adequate to supply full rated fuel flow at maximum design pressure for a given output.

As a rule of thumb, on gasoline, you will require about 5.7cc per minute per hp so a 300 hp engine would burn about 1710cc per minute. (300 X 5.7). On alcohol, double these figures. Injectors must also be capable of flowing adequate amounts. Total fuel flow divided by the number of injectors fitted will give you the minimum flow rate needed from each injector. We recommend running injectors to only 85% duty cycle. So, on a 4 cylinder engine with 300 hp, we would calculate 1710 divided by 4 = 428. 428 divided by .85 = 504. An injector flowing at least 500cc per minute should be used for this application.

If you already know the injector flow rate, you can calculate the maximum safe hp available with the following formula: injector flow rate in cc's per minute multiplied by the number of injectors divided by 7 equals maximum hp at 85% duty cycle. Using the above example, 500 X 4 divided by 7 = 286 hp.

New fuel lines may be run using rigid steel, copper or aluminum tubing. Flexible lines must be medium pressure hose intended for fuel injected applications. Working pressures can exceed 60 psi on turbocharged engines.

Fuel pressure regulators vary the fuel pressure according to manifold pressure. Fuel pressure at idle on most engines should be 2 to 2.7 Bar (30 to 40 psi on most engines. Wide open fuel pressure on naturally aspirated engines should be 2.3 to 3.0 Bar (35 to 45 psi). Fuel pressure on turbocharged engines should be around 2.5 Bar (35 psi) plus boost pressure.

Excess fuel not burned by the engine is returned through the regulator back through the surge tank, then back to the fuel tank. A fuel return line back to the tank is required.

The surge tank should always be mounted above the main EFI pump inlet so that fuel may gravity feed into this pump. Surge tanks ensure that the fuel supply will not be interrupted by air

entering the system under high G situations. Fuel injected engines will not run properly with air in the system.

System Hookup and Mounting

Connect each component according to the schematic below. Most separate wires are marked and those with Weatherpack plugs are self-evident with regards to connection. Separate wire connections are as follows: Green to negative coil terminal or tachometer lead. Keep the green wire as far as possible from ignition wires. Red to battery positive or switched 12 volt source. If hooked to ignition switch, be sure that there is power in the circuit when the key is in the start position. Black wire on main harness to chassis ground. There is a second black ground wire on the white plastic connector. Both must be well grounded to the chassis. Red wire(s) on injector harness to switched 12 volts positive. Grey wire to O2 sensor if used. Optional orange wire to fuel pump relay. Optional brown wire to fast idle relay. Optional purple wire to RPM SWITCH relay. Note 4 cylinder injector harnesses have a single power wire while all others will have 2. For E and F systems, consult the appropriate manual supplement for additional wire hookups.

A 1 amp fuse should be placed in line with the ECU red power wire. Note if ECU power is obtained directly from the battery, a switch should be placed in line to prevent the battery from being run down over time. Ensure that all connections to ground have proper metal to metal contact.

All wiring connections in the engine compartment should be supported in such a way as to prevent vibration from working directly on the wires, sensors and connector plugs. Tie wraps should be used for this purpose. Never run wires through jagged firewall holes unless a grommet is used. Keep all wires and especially the green tach wire on D systems and the Hall cables on E and F systems, as far from the ignition components and hot points as possible.

ECU Mounting

The ECU must be mounted in a moisture free location inside the vehicle. Use the mounting tabs to secure it to the chassis. The ECU should be mounted at least 3 feet away from the ignition coil and wires if possible, preferably behind a metal firewall.

Resistor Pack Mounting

On installations using low impedance injectors, a resistor pack is used between the ECU and injector harness. This is an aluminum plate with gold colored resistors mounted to it. This pack should be mounted in the engine compartment, usually to the firewall in a location between the wiring grommet and the injector harness using sheet metal or machine screws. Be careful drilling holes through any sheet metal without first checking if there is something like a heater or brake line on the other side. Be aware that this resistor pack can get very hot under high duty cycle conditions and the aluminum plate acts as a heat sink for the resistors. For this reason, make sure that it is mounted clear of any components which might be affected by this heat or close to any components such as the exhaust which might not permit adequate cooling of the pack.

Temperature Sensor Mounting

The standard water and air temperature sensors both utilize 3/8 NP threads. The water temp sensor should be screwed into the cylinder head so that it can read water temperature during warmup INDEPENDENT of the water controlled by the thermostat. Note air cooled engines are fitted with a cylinder head temp sensor for warmup enrichment. Thread size is metric 10 X 1.0mm. This is connected to the white wire on the main harness.

The air temp sensor should be placed in the intake manifold or induction pipes after any intercoolers which may be fitted.

Air and water temperature sensors may be fitted to your engine using either adapter bushings into the original sensor bosses or by drilling a hole into a suitably thick area in the intake manifold for the air temp or the cylinder head or thermostat housing in the case of water temp sensor.

If drilling into an area, be sure to check that the wires from the sensor will clear things like pulleys and exhaust pipes and that drilling will not damage anything underneath. The area should be a minimum of 5mm (.200 in.) thick and should be pilot drilled before final drilling with a 37/64 drill. Both sensors use 3/8 NP threads which are tapered threads. When tapping, be careful not to go too deep or the sensor will not tighten properly. The sensor should thread into the hole half to three quarters of the way in with mild pressure.

Optional 1/8 NPT sensors are available on special request for restricted space applications. These require an 11/32 hole to be drilled for tapping. Bosch temp sensors are available for metric conversions. These use a 12mm X 1.5mm thread.

Be sure to clean out all chips from the drilling and tapping operations before installing the sensors. Two or three wraps of teflon tape should be used on the final assembly. Sensors should be tightened until snug with a short wrench. A wire tie should always be used to secure sensor cables to prevent vibration breakages.

Map Sensor Mounting

The MAP sensor if used should be mounted in a moisture free area close to the intake manifold and connected using a length of 3mm (1/8 in.) Vacuum hose to the intake manifold DOWNSTREAM of the throttle body. Always try to mount the MAP sensor with the vacuum

port facing down. The placement of a .025 to .035 inch orifice in the vacuum hose may be required on some installations to reduce MAP fluctuations

Throttle Position Sensor

Systems not using a MAP sensor rely on the TPS for both acceleration enrichment and load sensing. The TPS is used on ALL systems to supply accelerator pump information to the ECU. EM-3 systems are not supplied with a TPS as standard. Your stock TPS may be used if it is of the potentiometer type. Most cars made after 1985 use a potentiometer type TPS.

Spare pins and a plug will be supplied with your system to allow grafting onto your stock TPS wiring. You can cut your stock TPS wires a few inches behind the plug and crimp on the 3 pins to the 3 wires used. Snap the pins into the supplied plug as outlined in the next section.

If you have ordered the optional TPS kit, your wiring harness will already have the 3 pins crimped onto the TPS cable. There are 2 different TPSs. One is identified by a grey top and drive is for clockwise opening throttles. The other has a black top and is for counter clockwise opening throttles. Make certain that you have the proper TPS for your installation.

You can check this by holding your throttle body with the shaft end which you intend to mount the TPS on facing you, then open the throttle. If the shaft rotates clockwise, you need the grey TPS. IF it opens counterclockwise, you need the black version. The pins are plugged into the 2 TPSs differently: The TPS plug has the numbers 1,2 and 3 stamped into it on the top, back face. Grey TPSs are wired as follows: pin 1- red, pin 2- white, pin 3- black. Black TPS's - pin 1 - black, pin 2- white, pin 3- red. Pins are snapped into the back on the plug then the blue pin lock is slid back towards the pins so that it is flush with the black plug face. Be sure that the pins are in the correct hole before snapping in place as they are impossible to remove once inserted. Both TPSs feature identical 5/16 D type drives to fit most popular import throttle bodies. Mounting may be accomplished with an aluminum adapter plate bolted to your throttle body. Be sure that the plate is of the correct thickness to ensure that the throttle shaft will not bottom out and cause binding.

Using OEM Throttle Position Sensors

Many engines are already equipped with an SDS compatible TPS. Your system has included a 3 pin plug and 3 snap-in pins to plug into the main wiring harness plug labeled TPS. Not all TPSs are compatible with SDS, many are switches and not potentiometers. The SDS unit must use a potentiometer type TPS connected to the ECU for acceleration enrichment. The following procedure to determine correct wire hookups should only be attempted by people who know how to use an ohmeter and understand basic electronic theory.

Incorrect hookup of the TPS wires to the wiring harness can seriously damage the ECU and TPS. This damage is not covered under warranty.

The following applies to 3 pin TPSs:

Make sure that the TPS is mounted on the throttle body as it would be in normal operation. Set the ohmeter on the 100K ohm range. Place meter leads on TPS pins. Rotate throttle shaft and shuffle leads between the TPS pins until you see a constant resistance reading between two pins which does not change as the throttle is rotated. These 2 pins will be called the OUTER pins for now. The remaining pin will be called the CENTER pin. The center pin will be connected to the white or green wire ( pin 2) on the wiring harness plug marked TPS. Connect one meter lead to the CENTER pin and the other lead to one of the OUTER pins. Open the throttle slowly. If the resistance increases as the throttle is opened, this OUTER pin will connect to the black TPS wire. The other OUTER pin will connect to the red wire on the TPS plug.

If the resistance decreases as the throttle is opened, then this OUTER pin will connect to the red wire on the harness and the other OUTER will connect to the black wire on the harness.

On OEM TPSs with more than 3 pins, 3 of the pins may be for the potentiometer and the remainder may be switch contacts. SDS does not use the switch contacts.

By shuffling meter leads to different pins on the TPS and opening and closing the throttle while watching the meter, you can identify the pins that connect to any internal switches. The switch or switches will most often share one pin with the potentiometer. Open and close the throttle all the way while checking resistance. The resistance will change from zero to infinite or vice versa as the throttle is moved. Once the 3 potentiometer pins have been found, the other pins can be ignored.

To verify proper connections, power up the system and measure the voltage from the black to center (white) wire. The voltage should increase as the throttle is opened. In Gauge 2 mode, in the AP window you can verify proper TPS hookup by opening the throttle rapidly and watching the AP value. The value should go up to 10-30 for a half second or so then tumble back to zero within 1.5 seconds. Also in Gauge 3 mode TP indicates the throttle position. TP should increase as the throttle is opened.

Ignition Wires, and Interference Problems

Always use radio suppression type spark plug wires. NEVER use solid core wires. We recommend Magnecor or NGK. Try to mount the ECU as far from the ignition system as possible. Ignition interference problems usually show up as gibberish or strange symbology in the programmer screen. It is also not a good idea to route any of the SDS wiring near the ignition system. This is especially important on Hall sensor cables (E and F system).

LCD Programmer

The programmer allows you to access all points within each parameter. When powered up, SDS EFI should appear in the LCD window. From here, parameters may be called up by pressing the right or left parameter select buttons (< or >). As each parameter is gone through, the next parameter will appear in the window. Parameters will appear in the following order from left to right: GAUGE, GAUGE 2, GAUGE 3, MAGNET SEEN/NOT SEEN (E, F units only), FAST IDLE SWITCH, RPM SWITCH, FUELCUT BELOW TP, FUELCUT/RPM, FUELCUT/MANPRESS, VALUES LOCK, CLOSED LOOP ON/ OFF, CL LO RPM LIMIT, CL HI RPM LIMIT, CL MAP LO, CL MAP HI, KNOCK SENSE (E, F only), KNOCK RETARD (E, F only), MAGNET POSITION (E, F only), START CYCLES, START, RPM IGN (E,F only), IGN RET/MAN PRESS (E,F only), ENGINE TEMP, MANIFOLD PRESS or TP, RPM FUEL, ACC PUMP SENSE, ACC PUMP LO, ACC PUMP HI then, back to GAUGE.

The parameters will automatically loop back to the opposite end upon reaching one of the end selections. By holding down either the right or left parameter select buttons for more than 2 seconds, ranges will advance at the rate of 8 per second until the button is released at the desired location. The << button advances left at 20 frames per touch and can be held down for extremely fast scrolling.

Within each parameter, there are a number of ranges with a corresponding value number beside it. This value number is the one that will be changed to alter the injector pulse width. ie. RPM FUEL 5250, 57. RPM FUEL is the parameter, 5250 is the range and 57 is the value. The value number may be any number between 0 and 255. The larger the number, the more fuel will be injected at that parameter and range. By pressing any of the + or - buttons while a parameter is selected in the window will change the value. Don't play with these unless you want to change the value.

To change a value, use one of the 4 buttons labeled +1, +10, -1, -10. Each button will change the value in the window each time it is depressed by that amount. IE. With a 57 in the window, hitting the -10 button once will change the value to 47. The +10 and -10 buttons should only be used for quick, radical adjustments. Again, by holding down these buttons for more than 2 seconds, values may be changed quickly to the desired figure. For GAUGE MODE operation, see that heading. The VALUES LOCK feature must be selected off in order to program.

Programming

We highly recommend that you don't change any values under any parameter that you don't understand. If the manual does not clarify things to you, please contact us. Trying to diagnose a problem when something has been improperly set can be very time consuming. Random button punching can lead to frustration. If in doubt, DON'T. If you are tuning a system using TP load sensing, refer to the supplemental manual covering this aspect. It is very important that only one parameter is varied at a time while monitoring the gauge modes to see where the ECU is operating before adjusting any values. We highly recommend using a mixture meter to aid in tuning. See the supplement on tuning with the mixture meter. There is additional information on tuning and specific problems plus sample fuel maps on our website at www.sdsefi.com if you need additional help.

RPM (RPM FUEL)

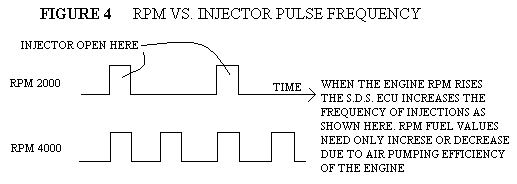

The rpm band is divided into ranges, usually 250 rpm apart. These values should usually be fairly close to each other varying only with the torque curve of the engine. It is important to note that the number of injections are doubled when the rpm is doubled regardless of the values entered.

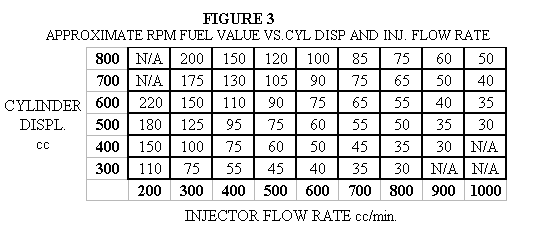

As a starting point, refer to figure 3 to get an approximate RPM FUEL value to enter for your engine. You will need your injector flow rate and engine displacement to use this chart. Injector flow rate is in cc's per minute. If your flow rate is in pounds per hour, multiply by 10 to convert to cc's per minute. For example a 30lb./hr. injector would convert to roughly 300cc/min. Take your engine displacement and divide by the number of cylinders to get your displacement per cylinder. Cross your injector flow rate with your displacement per cylinder to find your RPM FUEL value. Enter this value right from idle rpm to redline rpm as a starting point. This chart is applicable for gasoline. If you are using Methanol, double the fuel value in the box.

RPM values therefore only compensate for the volumetric efficiency or breathing differences related to rpm. RPM values SHOULD NOT rapidly increase with increasing rpm on most applications. See figure 4 for clarification.

Change the RPM value at whatever the engine rpm is at idle in Gauge 1 mode to obtain a smooth idle before adjusting any MAP values.

Lower RPM values should rarely be less than 40 unless the engine is fitted with extremely large injectors. The ECU multiplies MAP or TP value by the RPM value to arrive at the primary pulse width. With this in mind, if you enter a 0 or 1 in either the MAP or RPM charts, when the system crosses that point, it will shut off the fuel.

Each RPM FUEL value should be adjusted for best running at wide open throttle/low turbo boost. Use caution at high throttle openings with severe stumbles. You can melt the pistons if the mixture is too lean. Changing the values by 10's until a stumble disappears is the quickest way to get the setup close. Values can be fine tuned later on. RPM values should follow the torque curve of the engine. The highest value should appear at the torque peak rpm not the power peak. See figure 4.

Often people have their RPM FUEL values very incorrect and then find themselves having to re-slope the entire 64 manifold pressure values, which can lead to further problems. When the RPM FUEL values are setup correctly the majority of manifold pressure values can be left unchanged, thus greatly simplifying tuning of the engine.

RPM values should follow the torque curve of the engine. The highest value should appear at the torque peak rpm not the power peak. See figure 4.

Manifold Pressure (MANIFOLD PRESS or MP)

Data in the manifold pressure chart determines the relationship between vacuum and boost and the amount of fuel injected. Standard EM-3 systems have a negative sign preceding all vacuum numbers in inches of mercury, all boost numbers are in psi and have no sign in front of them. All units are pre-programmed with a standard MAP value chart depending on the MAP sensor used. These values should be close, so most initial programming is usually done on the rpm values. MAP values should increase roughly proportionally as MAP increases.

If the engine appears to be too rich everywhere, lower the RPM FUEL values across the board. Do not start re-sloping the MAP values as this often leads to people getting way off track.

Since idle mixture is difficult to pre-program, the user will almost certainly have to adjust the values in this manifold pressure range. Most engines will idle between 10 and 20 inches of vacuum so this is where the idle adjustments will be made. Idle MAP values work best by having them in the range of 25-35. Initially, you should leave your idle MAP values as per the standard MAP chart and only adjust the RPM Fuel values to obtain a smooth idle.

Select gauge mode to get an idea of what manifold pressure your engine is idling at. Select the closest range to this MAP by using the parameter select buttons on the LCD programmer.

If the mixture knob is to the left of 12 o'clock at idle, the mixture is too rich so the value in the window will have to be reduced by hitting the -1 or -10 buttons until the knob can be advanced to the 12 o'clock position. Use caution at high throttle openings with severe stumbles. You can melt the pistons if the mixture is too lean. Always go richer first with the knob to see if the stumble gets worse. Return the knob to the 12 o'clock position before working on the next range.

MAP values should increase in a reasonably linear fashion. They should not go up by one or two per location then suddenly increase by 5 or 8 per location, except possibly at idle.

If you wish to shut the fuel off during deceleration, this can be accomplished by entering 1's at the low vacuum numbers as seen in the example map. You cannot do this on TP systems. There are 3 different MAP sensors used with the system which cover a different range of pressures. The slope of the values will be different with different sensors.

If the idle speed is fluctuating up and down, move to the manifold pressure ranges just above and below where the engine is idling at. Make slight adjustments here until the idle is smooth.

Idle MAP values often work best when the values are the same over the whole range of idle MAP ranges (2-3 ranges). If the MAP fluctuates over more than 3 ranges at idle and you cannot get a smooth idle, you may have to install a .025 to .035 inch orifice in the MAP sensor line.

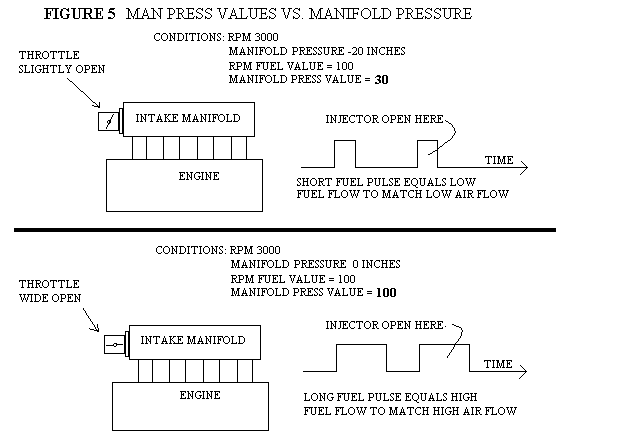

Refer to figure 5 if you do not understand the MAP concept.

For setting cruise and higher power MAP values, the same procedure as above applies. Set the programmer to Gauge 1 mode and increase MAP with the throttle until you identify a rich or lean spot either with the mixture knob or mixture meter. For example let's assume that at -8.42 to -6.81 inches we have a slight stumble and the mixture meter reads very lean. We continue to hold the throttle steady within this range while watching gauge 1 mode. Now, we turn the mixture knob richer until the stumble is no longer evident. The knob is turned to around +12% to make the engine run smooth. Now, we can go into the manifold pressure values to the ranges spanning -8.42 to -6.81.We can bump these up from say 90 to around 100 to see if we have made them rich enough. Remember to turn the knob back to its 12 o'clock or 0% position to verify your change. This will have to be repeated at all MAP sites where the mixture is not right.

When programming, remember to change only one variable at a time. To hold MAP constant, use a high gear and the brake or a hill to keep rpm from changing as you open the throttle. Make the change then go back to gauge, reestablish the range that you were working on and check the mixture again.

When using the mixture meter, most engines have to idle quite rich to be smooth. Under light load cruising conditions, most engines can be run quite lean for good fuel economy. Under full throttle and boost conditions, the mixture needs to be quite rich to produce maximum power and suppress detonation. It is normal for the mixture meter to go full lean when the throttle is released while in gear if 1's are entered in the high vacuum areas of the MAP ranges.

Throttle Position (TP or Throttle pos)

This section applies only to systems not using a MAP sensor. The TPS must be adjusted properly to supply correct data to the ECU. To do this, first select gauge mode on the programmer. In the top, left corner TP will appear followed by a 2 digit number between 0 and 64. These numbers refer to throttle plate position. With the throttle closed, rotate the sensor until a number between 4 and 8 appears behind TP. The TPS should be tightened down at this point.

Each number or position will have a corresponding value number beside it between 0 and 255, This value number determines the amount of fuel injected at that throttle position. Once the engine is started, the value number corresponding to the closed throttle position should be increased if the mixture knob is to the left of 12 o'clock or decreased if the knob is to the right of 12 o'clock. The aim is for smooth running with the knob in the straight up position.

Values only have to be entered for the position numbers from closed to open throttle. TP values should increase rapidly in the first 10 -20 numbers then slowly flatten out towards full throttle. Idle TP values should be in the 25-35 range. TP values multiplied by the RPM values result in the primary pulse width so the more air being admitted by the throttle plates, the higher the corresponding TP value should be. See the TP Tuning Supplement included with your manual for more details.

Acceleration Pump (ACC PUMP)

This function adds to the primary injector pulse width when the throttle is rapidly opened. There are 3 adjustments to make for the acceleration pump.

The ACCPUMP LO RPM value controls action from 0 to 1875 rpm. The ACCPUMP HI RPM setting controls action above 1875 rpm. Both parameters must have a proper value entered for proper engine response.

To set this parameter properly, snap the throttle open quickly. If the engine hesitates, change the value. If the hesitation is worse, you have changed the value the wrong way. Repeat this procedure on both HI and LO settings until engine response is acceptable. Acc pump values are generally between 10 and 50 on most applications.

The third parameter, ACCPUMP SENSE controls the sensitivity to slow throttle movements. This control is very important just out of the idle range. Set this control by opening the throttle slowly from the idle position. Adjust for the smoothest acceleration. 1 is least sensitive, 8 is most sensitive. Small engines with large throttle plates may require a larger value here as will engines with heavy flywheels.

If changing the values will not make the engine respond properly, check to make sure that the TPS is hooked up correctly. You can check for proper pump operation by first selecting GAUGE 2 mode. With an ACCPUMP LO RPM value of 10 entered, you should see the AP number increase from 0 to a higher number when the throttle is rapidly opened, then as the throttle movement stops, the number should quickly return to 0. The AP number should always be 0 when the throttle is not moving. If not, it indicates an intermittent connection or a damaged TPS.

Start (START)

Start enrichment is provided for under the START and START CYCLES parameters. The ECU takes its cues from the water (or head temp) sensor and injects extra fuel for a certain number of engine cycles after the ECU detects crank rotation. This function is activated every time that the engine is started no matter what the water temperature is. It is critical for proper starting, especially in cold climates.

The value entered at a particular START water temp determines how much will be added to the primary pulse width to aid starting. Injector flow rates will have a large effect on these values. Large injectors will require smaller values on the same engine compared to smaller injectors.

At colder temperatures, the values are high, tapering off as the engine warms up. At temps over 100 degrees F, most engines do not require much extra fuel so the values should be low here although on some engines hot starting may be improved with some extra fuel to aid flushing boiling fuel from the injectors. Experimentation is required for a satisfactory setup here.

The value entered under START CYCLES determines how long the start enrichment lasts for. This is adjustable between 0 and 255. This is the number of crank revolutions times 2 on a 4 stroke engine and the number of crank revolutions on a 2 stroke engine. Some engines require start enrichment lasting a long time, others only require a short start enrichment period. The larger the value under START CYCLES, the longer the enrichment period.

The 2 adjustments must be set carefully. If the engine fires immediately at any temperature, the START values are good. If the engine takes a lot of cranking to get running, the START values may be too low. If the engines starts quickly but then stalls after a few seconds, there are two possibilities; either the START CYCLES value is too low or when the start cycles have expired, the ENGINE TEMP values are too low.

Once the start injection cycles have occurred ( usually 3-15 seconds), the ECU reverts to Engine Temperature for warmup enrichment. These two parameters should not be confused.. The START function is automatically reset after the engine stops turning.

Engine Temperature (ENGINE TEMP, ET)

The value in this parameter determines the amount of extra fuel injected to compensate for a cold engine during warmup. Liquid cooled engines use a water temp sensor and air cooled engines use a cylinder head temp sensor to supply this info to the ECU. You should aim for a 0 value when the engine is at normal operating temperature. Most engines will not require extra fuel after 100-120 degrees F. Temperatures can be displayed in F or C. The values should decrease in a fairly linear fashion from cold to operating temperature then have 0's entered above this threshold.

Some engines like a little additional fuel when hot starting to flush the injectors. Under heat soak back conditions, this extra fuel will be added until water circulation brings the water temperature below this threshold. If you are doing this be sure to only enter numbers above the water temps which are in the normal operating range.

As a reference, a value of 127 would add 50% to the pulse width and a 255 entered will double the pulse width.

By flicking back between gauge mode and water temp you can make adjustments while the engine is warming up. Each time the ECU updates to a new ET in gauge mode, you can go to that ENGINE TEMP in the window. Now turn the knob richer and leaner and note where the engine starts to run rough on each side of 12 o'clock. If it runs rough say at 10 and 2 o'clock, you probably have the water temp values about right. If not, adjust the ENGINE TEMP value at the water temp displayed currently in gauge mode.

Temperature (AT or AIR TEMP)

The air temperature correction map is pre-programmed when delivered and is not normally user accessible. It provides an absolute density correction relating to cues from the air temperature sensor. AT is displayed in GAUGE mode.

On some engines, there is considerable heating of the induction air in the intake manifold, especially on non-crossflow types. In these cases, it is important that the air temp sensor be located close to the intake ports. If the sensor is placed too far away, the engine will tend to run rich because the sensor is not reading the true temperature of the air entering the engine.

On turbocharged engines, the sensor should be located in a position where it will be wetted by high velocity air after the intercooler. The wide range of temperatures that these engines operate over dictate that the sensor detect changes as quickly as possible.

Heat soak-back after shut down or prolonged idling can cause starting and running problems. Fuel can boil in the injectors and fuel rails making it virtually impossible to meter fuel accurately. Don't blame these problems on the system. Changing the air temp sensor location may help this problem. Be aware that conduction from water or exhaust heated manifolds may give false air temperature readings.

Gauge Modes

Calling up the gauge modes allows you to see in real-time, the sensor inputs to the ECU. This is useful for diagnosing sensor problems as well as programming. In gauge 1 mode (obtained by pressing the gauge button once) the LCD screen displays RPM, manifold pressure, air temperature and engine temperature simultaneously. If you encounter a strange problem or stumble, always select the gauge modes first to see if everything makes logical sense. Most problems can be quickly diagnosed here if you understand the system. The gauge button allows quick access to the gauge mode and upon pressing the button again, return to the previous parameter and range.

Gauge 2 mode can be accessed by pressing the right scrolling button (>) once when in gauge 1 mode. Gauge 2 displays mixture knob position, acceleration pump action, injector duty cycle and ignition timing in degrees BTDC on E and F units only.

Gauge 3 mode displays battery voltage and throttle position (TP). It is accessed by pressing the right scrolling button (>) once, when in Gauge 2 mode. Error codes for the temperature sensors will appear in Gauge 1 mode. For more information on these functions, consult Page 22, Diagnosing Sensor Problems.

Closed Loop Feedback Control (CLOSE LP or CL)

EM-3 systems are equipped with closed loop mixture control capable of taking cues from an oxygen sensor. In closed loop mode, the ECU attempts to hold the air/fuel ratio around stoichiometric (14.7 to 1 AFR for gasoline). The O2 sensor sends a DC voltage to the ECU in proportion to the free oxygen present in the exhaust stream.

If the sensor detects a lean condition, the ECU increases the injector pulse width to compensate and vice versa. Since there is a delay time between sensing and correction, the air to fuel ratio will continuously fluctuate slightly to either side of stoichiometry. This condition can be seen when using a mixture meter for setup. Holding the mixture close to the stoichiometric range is essential for the lowest possible emissions when the engine is fitted with a catalytic converter. Closed loop operation is not possible with leaded fuels or on SDS systems using TP for load sensing.

Many engines will not tolerate being idled at the relatively lean mixtures associated with closed loop operation nor will they safely tolerate these lean mixtures at full throttle, therefore the closed loop mode has rpm and manifold pressure limits, outside of which the ECU will switch out of closed loop into open loop (programmed values) mode. The ECU will also switch out of closed loop when the throttle is opened quickly. Closed loop will not be engaged by the ECU until the engine temperature exceeds 35C (95F) and the sensor voltage first exceeds .625 volts. The rpm and MAP must also fall within the programmed limits.

The following limits are programmable: CL LO RPM LIMIT and HI which determine where the ECU will discontinue closed loop control at. If you select 1500 and 4500 RPM respectively in these slots, closed loop operation will be discontinued whenever the rpm goes above or below these limits. The same thing applies for the manifold pressure limits, CL MAP LO and CL MAP HI. The engine must operate within these 4 limits or the ECU will revert back to open loop. CLOSED LOOP OFF can be selected if you wish to disable the feature. The grey wire must be connected to an oxygen sensor and CLOSED LOOP ON must be selected to set the closed loop function.

The O2 sensor will not supply reliable information to the ECU when cold (below 600 degrees F). A 3 wire heated sensor will give better results over an unheated one. Software limits prevent the ECU from adding or subtracting more than 25% to the primary pulse width in closed loop so it is important that the open loop fuel values are reasonably close to correct for proper functioning of the closed loop control.

Closed loop operation in most OE applications is generally limited to cruising conditions. Never program in limits corresponding to high power, high rpm conditions. Severe engine damage due to lean mixtures can result. A lean stumble is often apparent when the engine is unhappy about running in closed loop. Limits should be set to avoid these conditions. A mixture meter is highly recommended for system setup.

As stated before, many engines will not idle smoothly in closed loop mode. We recommend as a rough guideline, setting the CL LO RPM LIMIT no lower than 1500 rpm and the CL HI RPM LIMIT no higher than 70% of the redline rpm limit. Likewise, closed loop manifold pressure limits should preclude the low vacuum idle conditions as well as the high throttle ones. Set the CL MAP LO limit 3 to5 inches above the normal idle MAP value and the HI limit around -5 inches for naturally aspirated engines and from -5 to 2 psi boost on turbo/super charged engines.

In CLOSED LOOP ON/OFF mode, ON/OFF is selected with the +1 and -1 buttons. In the other 4 CL modes, the +1,-1 buttons are used to select the HI/LO points which will be in the same graduations as your RPM and MAP ranges. Always leave the closed loop off if no O2 sensor is connected and always leave closed loop off until all normal programming is completed.

Mixture Knob (KNOB)

The mixture knob controls the overall mixture across all ranges. In effect, it adds or subtracts a percentage to the injector pulse width. From the straight up or 12 o'clock position, the mixture can be leaned roughly 50% by turning the knob fully counter clockwise or 50% richer by turning it fully clockwise.

The knob is very useful in determining a rich or lean condition. It is important to leave the knob in its final position once programming is complete. Precise return of the knob to an exact position can be noted in gauge 2 mode under KNOB. A +, 0 or -% indicates rich, neutral or lean position. The knob may be disconnected if desired. This will leave the setting at 0% so it is important to complete proper programming with the knob at 12 o'clock if the knob is to be disconnected.

Disconnecting the LCD Programmer

Set the values lock to the ON position before disconnecting the programmer. It is also a good idea to shut off the engine before unplugging the programmer.

Setting Safety Limits/Fuel Cutoff

Overrev and overboost protection can be obtained by selecting the point of fuel cutoff on the LCD programmer. This can be done in 2 ways. The preferred method is to use the FUELCUT/RPM parameter for rev limiting. Simply enter the rpm where you want the rev limit. For boost limiting, call up the FUELCUT/MANPRESS window and enter the manifold pressure that you don't want to exceed.

The second method is as follows: If you wanted to shift at 7000 rpm, calling up RPM FUEL 7250 and entering a 1 would not allow the engine to exceed 7125 rpm. Boost limits are entered in a similar fashion by calling up the appropriate MAP range for fuel cutoff and entering a value of 1. We recommend that you also enter a 1 in the next range up as sometimes the engine will run through the first cutoff in the lower gears.

Theft protection can be obtained by entering a 1 at the lowest RPM FUEL range and removing the programmer. To restart, you would have to re-enter the proper value at that point.

FUELCUT BELOW TP

This parameter is used to cut off fuel when coasting with the throttle closed. It is in operation only when the engine is above 2000 rpm and a TP value is entered in the window. When it is selected off, the function is disabled. A value of between 2 and 20 can be entered. The + and - buttons are used to select the desired value. If you plan to use this function, we recommend that you verify your closed throttle TP by selecting Gauge 3 mode. With the throttle closed, it will display your closed throttle TP setting here. If this is 5 for instance, you would probably want to enter 5 or 6 in your FUELCUT BELOW TP window. The advantage of using this parameter to shut off fuel when coasting over a MAP fuel cut is that there is no hunting and surging as the MAP fluctuates near its cutoff limit. For certain applications such as in aircraft or when the system is programmed for anti-lag turbo operation, you would probably want to leave this function disabled in the NO FUELCUT mode. Shutting off fuel during deceleration saves fuel and reduces emissions.

Turbo Anti-lag Programming for E and F Systems

For racing applications only, E and F systems may be programmed to reduce turbo lag by retarding the ignition timing and increasing the fuel supplied under high manifold vacuum conditions. The fuel is forced to burn in the exhaust system which keeps the turbine spooled up to some degree during closed throttle conditions. This function should be used only on race applications and only on cars equipped with very strong straight through, stainless steel mufflers or no mufflers as extreme temperatures and pressures may result. Turbocharger and exhaust system life may be seriously reduced as well.

Programming is accomplished by entering a MAP fuel value of 20-40 under the lowest MAP range available and entering an IGN RET/MANPRESS value of 20-30 in the lowest range available.

Startup Procedure

Make sure that fuel at the correct pressure is present at the injectors. Turn on ignition and computer power. Crank engine, rotate mixture knob while cranking. If engine does not fire, see troubleshooting section. You may also have to increase the START values to get the engine to fire, especially if you have small injectors.

Once the engine is running, use the mixture knob to get a smooth idle. Let the engine warm up to normal operating temperature. Once warmed up, attempt to set the knob near the center position (12 o'clock). To do this will most likely require adjustments to the values in the RPM FUEL chart. If the knob is on the rich side of 12 o'clock, the RPM FUEL values are too low and vice versa.

Your ECU comes pre-programmed with data that will in most cases, allow the engine to run in some reasonable fashion. These values will be based on the engine displacement and injector flow rates which you have provided us with. These are educated guesses so you may have to do a certain amount of re-programming. If you are unsure of what values to enter, refer to figure 3.

Refer the example maps if you get lost. It will give you an idea of what a good set of values should look like on a properly mapped engine. Our website at www.sdsefi.com has a samples section for further info. A mixture meter hooked to an O2 sensor will help you in programming your engine. See the section on tuning with this device.

Once the engine is idling properly, RPM should be the first parameter worked on. Please note that the sample engine maps are only samples. They show the TRENDS of a properly mapped engine. If you double the injector size, the RPM values will be halved roughly. Figure 3 gives you the best starting place for RPM FUEL values.

On E and F systems, you must set the MAGNET POSITION parameter as soon as the engine is idling smoothly before performing any other adjustments. Refer to your E or F supplement.

RPM, MAP, Fuel Flow, Duty Cycle Concerns

Having both MAP and RPM values over 200 probably indicates that your injectors are too small or perhaps that fuel delivery to the injectors are insufficient. You can check the duty cycle slot in gauge 2 mode. At full throttle, the duty cycle should not exceed 85%. When duty cycle exceeds 100%, the engine will start to run lean. The injectors are too small in this case.

Make certain that the fuel delivery is adequate at full throttle. The engine will not run properly if fuel flow is insufficient in any part of the system. A fuel pressure gauge is a good idea. Pumps should be hooked in parallel not series to avoid cavitation.

MAP Sensors and Vacuum Sources

The solid state MAP sensor requires a smooth vacuum/pressure signal to relay a proper signal to the ECU. High amplitude pressure pulsations as you would have when connecting the sensor to a single runner behind a throttle plate on an independent runner manifold would be unacceptable. The MAP sensor may function properly on an IR manifold only if all runners are tapped for a vacuum signal and run into a small common plenum as shown in (Figure 6) leading to the sensor. If this is not feasible, the TP method of load sensing should be considered.

In gauge mode, if the MAP reading fluctuates a lot at idle, the hose to the sensor may have to be orificed . A .025 to .035 inch MIG welder tip can be used.

Naturally aspirated engines with small intake plenums and over 300 degrees of camshaft duration may work better using TP rather than MAP. All turbocharged and supercharged engines must use the appropriate MAP sensor for load sensing. MAP sensors are available in 1 Bar Ab for naturally aspirated engines, 2 bar for blown engines up to 15 psi of boost and 3 Bar for engines running up to 30 psi of boost.

ECU Reset

Any time that the power is shut off or interrupted to the ECU or if interference prevents the software from running properly, the ECU will automatically perform a reset. This takes about 0.5 seconds. When this happens, the SDS EFI startup screen will appear in the LCD window.

Shutting off Power and Memory

Switching off power the ECU causes no ill effect for the system or ECU memory. As soon as you change a value with the programmer, it is permanently changed and stored in memory even with power off.

Injectors

There are basically 3 types of injectors with regards to the flow orifices. One is the pintle style of which most older Bosch and Nippondenso types are. These have a small tapered spike or pintle which is pulled back when the magnet windings are energized, thus letting the fuel spray out. These are very reliable and quite resistant to plugging. We recommend Bosch, Nippondenso and OEM injectors only.

The second type is the GM/Rochester/MSD ball type. These have slightly better atomization but are more affected by dirt and varnish. In our experience these do not have the long term reliability of the pintle style. We specifically do not recommend the use of MSD injectors 2011 or 2012. These injectors are electrically incompatible with our drivers.

The third type is the disc style. These are made by various companies including Bosch/Ford and Lucas. These are popular in late model applications but also are not as reliable in the long term as the pintle style.

The second important injector characteristic is the resistance or impedance of the magnet windings. Low resistance injectors are characterized as peak and hold types. They will have a winding resistance from 1.7 to 3 ohms. They are opened with a current spike of 2.5 to 4 amps then held opened with a current of .75 to 2 amps. Injectors with a 2 amp open and .5 amp hold current cannot be used with our drivers.

High impedance injectors are referred to as a saturated type. Impedance is usually 10 to 16 ohms and they are opened with a sustained current of about 1 amp. Peak and hold injectors open more quickly at short pulse widths especially so the idle quality with large injectors fitted may be somewhat better.

Injectors come with various types of noses and fuel fitting ends. Early Bosch and Nippondenso injectors are available with an 8mm (5/16 in.) Hose barb fuel connection and a 16mm (5/8 in.) nose barrel. These are sealed with a flat type O-ring. These may use either an internal type electrical connection or the later type external style plug.

Later Bosch and Nippondenso injectors are identical to the ones above except that they use the late style electrical plug and an 11mm round O-ring to seal the fuel inlet connection.

The latest style which most modern and aftermarket injectors use, is the so called domestic O-ring style. These use 16mm (5/8 in.) round O-rings to seal both ends of the injector and use the late style electrical connection.

Toyotas built after about 1989, Subarus and some Nissan products use their own weird injectors, so beware. When upgrading OE installations with larger injectors, be sure to check that the O-ring and electrical connections are compatible.

All Bosch injectors are built to very high standards and are very robust. In the injector world, you get what you pay for- cheap injectors are usually poorly made, are non-linear with pulse width, won't last or have poor spray patterns. Buy Bosch or Nippondenso and you can't go wrong.

Don't expect super large injectors to offer stock idle quality or fuel economy. The maximum size that we recommend for race and performance use is 1.5 times the displacement of 1 cylinder in cc's per minute. So if you have a 2 liter, 4 cylinder engine with 500cc per cylinder displacement, the maximum injector size which will idle half decently would be a 750cc/min. injector. If you need more than this, you should consider the staged injector option which uses 2 injectors per cylinder, one for idle and low speed operation and 2 for high speed operation. Injectors with impedances of 1.7 to 4.7 ohms (low) require our external resistor pack. Injectors with impedances from 10 to 16.5 ohms (high) do not require this.

Fuel Rails

The fuel rail provides a volume of fuel for the injectors and usually serves to hold down the injectors to the intake manifold. With barb style injectors, separate injector hold downs must be made but because of the flexibility of the hose, precise alignment to the rail is less important. With O-ring injectors, all injectors must be at the same depth and be perpendicular to the rail. Injector to rail spacing is also very critical with O-ring types. Details on fabricating intake manifolds and fuel rails are available on our website under the Tech and Aircraft sections.

Injector Drivers

SDS injector drivers on the EM-3 are now internally housed inside the ECU and are of the MOSFET type. Drive transistors may be triggered in ones, pairs, threes or fours depending on application. SDS is a non-sequential system like L-Jetronic Bosch systems.

Duty Cycle

Duty cycle refers to the amount of time that the injector remains open in relation to how much time is available at that rpm before the next injection cycle begins. This is usually expressed in percent and can be verified in gauge 2 mode under DUTY.

On occasion, very large injectors will cause rough idle problems due to the fact that the minimum triggering time admits too much fuel. Smaller injectors and/or the staged injection option are remedies to this problem. In cold climate, larger injectors may aid cold starting.

On constant high power applications such as marine or aircraft use, it is advisable to fit higher flow injectors than what might normally be used on street driven vehicles. These will limit the maximum duty cycles and enable the injectors and drivers to run cooler. The maximum continuous duty cycle should never exceed 70%.

Staged Injection Option

Staged injection allows your engine to run on one injector per cylinder (or rotor in the case of Wankel engines) at low load and two injectors at high load. The point of switching is preset and is non-programmable by the user.

At a predetermined pulse width of 8 milliseconds for example, the primary injector pulse width would be halved to 4 milliseconds and the secondary injectors would also be brought on line at 4 milliseconds. As such, no special programming is required.

It is important to have injectors of the same flow rate in both locations so that there is no bump in the fuel curve. Throttle bodies and intake manifold must be arranged so that air is always flowing past all of the injectors all of the time.

Injector harnesses are marked for primary and secondary if this is important on a particular system.

Optional Fuel Pump Relay

SDS units can be equipped with an optional output to control a relay to switch the fuel pump off when the engine is not turning over. This feature is designed to prevent the pump from emptying the tank in a serious accident. The pump relay is energized for 2.8 seconds when power is turned on to pressurize the fuel rail until the ECU detects crank rotation. If the engine stalls the ECU will shut off the relay in 2.8 seconds.

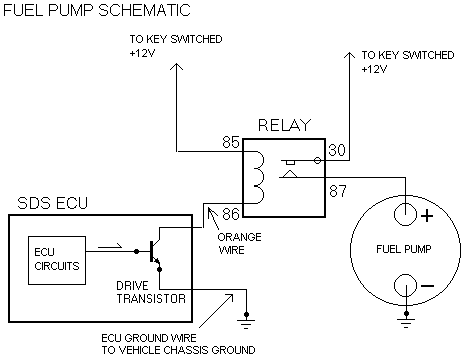

Relay wiring is as follows: pins 30 and 85 to switched 12 volts, pin 87 to the fuel pump positive terminal, pin 86 to orange wire on main harness marked FPR.

center>

Fast Idle Option

The fast idle option consists of a solenoid valve which connects to the intake manifold via 5/16 vacuum hose and a relay controlled by the ECU via the engine temperature sensor. When the engine temperature reaches the preset point, set in the window, FAST IDLE SWITCH, the relay closes the solenoid to allow normal idle speed. Below this temperature, the solenoid is open bypassing additional air around the throttle plate. The point of solenoid closing (off) is adjusted under the FAST IDLE SWITCH parameter by using the +1 and -1 buttons. Note that the -1 button raises the temperature set point and the +1 button lowers it. The cut off point would usually be set between 120 and 140F on most engines.

Relay connections are as follows: pins 30 and 85 to +12 volts, pin 87 to solenoid terminal, pin 86 to brown on harness. The solenoid mounting flange must be grounded.

Solenoid connections are as follows: Hose marked PUMP is connected to the intake manifold with 5/16 vacuum hose. The other port may be connected to the air filter assembly or left open.

If the fast idle rpm is higher than desired, a restrictor can be placed in the other port hose to cut down the air volume bypassed. The MAP sensor automatically compensates for the extra air being admitted by the solenoid valve.

RPM Switch Option

The rpm switch control option allows the user to select the rpm where switch is activated. This option may be used to switch anything rpm dependant on and off especially variable valve timing and supplemental induction valves.

Wire connections on relay are as follows: pin 85 to +12 volts, pin 86 to purple on main harness, pin 30 and pin 87 are the switch contacts and need to be connected in series with the device being controlled.

To program rpm operation, go to the RPM SWITCH ON AT window in the programmer located to the right of the magnet window. The rpm that you wish to turn the switch on at is selected with one of the four + or - buttons. Below the rpm that you have selected, the switch is in the normal or low speed mode (off), when the rpm reaches the selected value, the relay is activated (on). This option is suitable for MAP systems only.

Air Conditioning Solenoid

The a/c solenoid option permits an increase in idle speed whenever the a/c compressor clutches in. It uses an air bypass solenoid similar to the fast idle option. The solenoid body must be grounded, the power terminal should be connected to the a/c clutch wire or relay. Hose connections are the same as for the fast idle relay option above. The option is suitable for MAP systems only.

Values Lock

This feature allows you to lock out the programmer function to prevent inadvertent changes to your values. To lock your values, select VALUES LOCK window in the LCD programmer. The +1 and -1 buttons are used to select it to the ON or OFF position. When you are done programming for a while or plan to disconnect the programmer, always engage VALUES LOCK ON. You cannot program the system with VALUES LOCK ON selected.

Diagnosing Sensor Problems

The two gauge modes permit monitoring of the primary sensor inputs to the ECU in real-time. Rpm should be stable, agreeing with the factory tach. Spurious rpm readings usually indicate ignition or triggering interference.

Manifold pressure should increase as the throttle is opened at a given rpm. On TP systems, opening the throttle should increase the TP number. The TP number should not change if the throttle is not moving.

Engine and air temps should roughly agree with the ambient temperature if the engine has been shut down overnight. Very low temp readings on a warm engine indicate a defective sensor or a broken connection.

Switching to gauge 2 mode allows you to monitor the mixture knob position. It should read 0 at the straight up position. You should be able to get the reading to change from -49% to +49% by turning fully to both stops.

Acceleration pump operation is verified by snapping the throttle open. The AP number should rapidly increase until movement is stopped then the number should rapidly decrease to 0 again. The AP number should always be 0 unless the throttle is being moved. Rough running and a fluctuating TP or AP reading without throttle movement indicates a TPS problem usually.

Version 9.0, EM-3D software (released Jan. 23/01), can now detect and display temperature sensor failures. If Gauge1 mode displays ET ERR or AT ERR, this indicates that the wiring or sensor has had an open circuit condition. Even if a sensor is momentarily disconnected from the EM-3, the gauge display will change from displaying temperature into ERR. The ERR message can be cleared by pressing the +10 button only when in Gauge1 mode. Error messages will also be cleared if the ECU is disconnected from power.

Trouble Shooting

When encountering problems which can be identified to be linked with a specific area or function, always go to that section in the manual first and re-read it.

Will not start
1. Try turning mixture knob richer while cranking. START values might have to be increased.
2. Check all connections on ECU, driver box, coil, power and grounds.
3. Check fuel pump output.
4. Check for spark.
5. Check injectors for clicking.
6. Check fuel cut limits for MAP and RPM.
7. Check hall sensor alignment on "E" and "F" models.

Cuts Out at High Power
1. Fuel pump not adequate.
2. Injector flow rate too low.
3. Fuel lines or filter plugged or too small.
4. Check fuel delivery at fuel rail.
5. Engine is crossing an improper value.
6. Fuel pressure too high, injectors won't open.

Not Running on all Cylinders
1. Check each injector for clicking sound.
2. Check plug wires, plugs

Cuts out Under Lateral G
1. Fuel pickup problem in tank.

SDS EFI in Window
1. Power has been interrupted or ECU has reset.
2. ECU has reset due to ignition interference. Move sensor wires away from ignition components. Use proper ignition wires. Check for loose ignition leads. Move ECU further away from engine.

Strange Symbology or black bars across the top of the LCD window
1. Programmer data being interfered with. Check cord for damage, tight connections. Could be caused by ignition interference because of poor plug wires. Use Magnecor or NGK wires. Check main harness connection to ECU.
2. Check ignition rotor phasing and plugs for excessive gap.

Poor Running, will not Respond 1. Check for leaking fuel pressure regulator diaphragm.

Will not rev up or has Miss
1. Check for bad values in RPM or MAP parameters. Could be crossing a bad value anywhere.
2. Check fuel cut limits.
3. Hall sensor mount is vibrating. Stronger bracket required "E" and "F" models only. Watch RPM reading in gauge1.
If you see RPM reading HALF actual rpm, then this is the problem.

Engine fills up with fuel
1. Bad ECU ground wire connection
2. Check for leaking fuel pressure regulator diaphragm.

Won't run over 2000 rpm
1. Check fuel cut TP limit

Temp sensors read wrong
1. Check Gauge 1 for error codes

For "D" model only

Erratic idling or running may be due to a poor or incompatible rpm signal to the ECU from the coil or tachometer lead. By calling up gauge mode you may look for this condition under the RPM parameter. It will show up as an unsteady reading when the rpm is steady. For example, if you see the rpm changing from 2000 to 4000 rpm in the window but the actual engine rpm is not changing, you have this problem. When this happens, extra fuel is dumped in and the engine will run very roughly as it is too rich.

Switching the green tach wire to a different source such as the tach pickup or negative side of the coil may solve this problem.

Warranty and Returns

EM-3 is sold for off road use only. New car warranties and emission standards are voided by installation of this system. Since SDS cannot control the installation or use of its products, we accept no responsibility for damage, loss or personal injury while using our products. By using SDS products the user understands and accepts this.

All SDS electronic components are guaranteed to be free from defects in workmanship and material for a period of 1 year from the date of sale to original purchaser if installed according to this manual. SDS shall make the sole determination with regards to all warranty claims.

Components are not covered if they have been altered in any way, physically damaged, subjected to moisture or incorrectly connected.

Defective components will be repaired or replaced as soon as possible at the discretion of SDS. Prior authorization from SDS is required before any warranty or returned item is accepted. All returns shall be shipped ONLY by air mail or FEDEX AIR. Items sent by UPS ground or DHL will be refused at the door and sent back to you. No returns are accepted after 30 days and all returned goods are subject to a 15% restocking fee as well as a charge for any damaged components, cut wires or missing items. Warranty returned items must have the shipping documents marked with the following information: Manufactured in Canada. Returned for warranty repair. Please put the approximate value of the returned items only, not the full purchase price of the system, otherwise their may be substantial duty charges which we may have to pass on to you if the paperwork is not filled out correctly.

Items shipped to us for warranty checks or testing which are working properly may be subject to a $40US charge plus shipping.

All SDS software and PCB design is the exclusive property of Simple Digital Systems. Unauthorized use or reproduction is a violation of copyright.

For Magnecor wires contact:

Magnecor

2550 Oakley Park Road 200

Walled Lake, Michigan 48390

USA

Phone 248-669-6688

For technical assistance contact your dealer or:

When calling for help you should know which system you have. We offer 3 different systems,

"D" is fuel only, "E" fuel&ignition, "F" fuel&multi coil ignition.

Racetech Inc.

G 1007, 55 Ave. NE

Calgary, Alberta, Canada

T2E 6W1

Phone 403-274-0154

Fax 403-274-0556

E-mail racetech@cadvision.com

Website www.sdsefi.com
