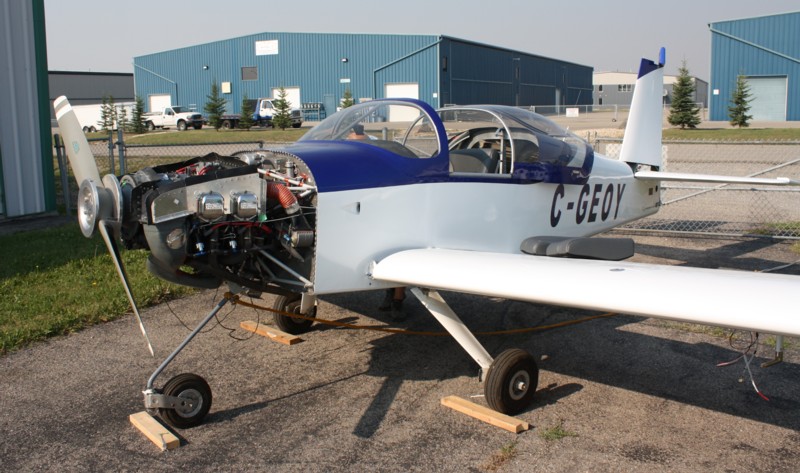

Project RV6A

This page will contain information, photos and video links detailing the SDS EFI/EI installation, tuning and testing on the RV6A built by Ralph Inkster and Howard Brekke.

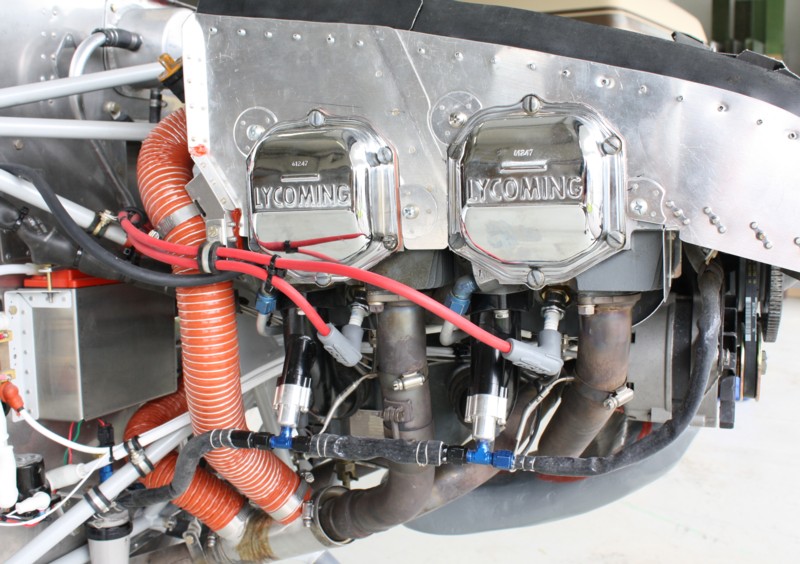

Injector mounting detail on the O-360 engine. This is the alternative injector mounting system for Lycoming engines.

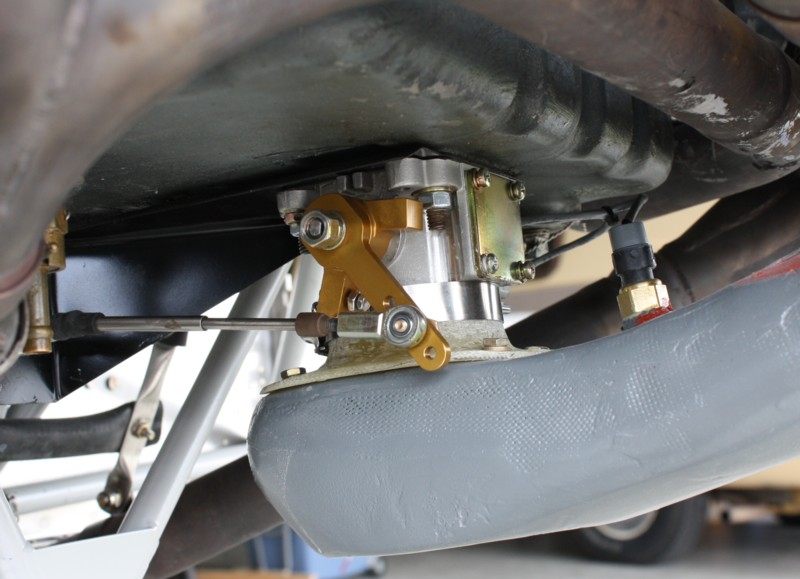

Throttle body mounting detail

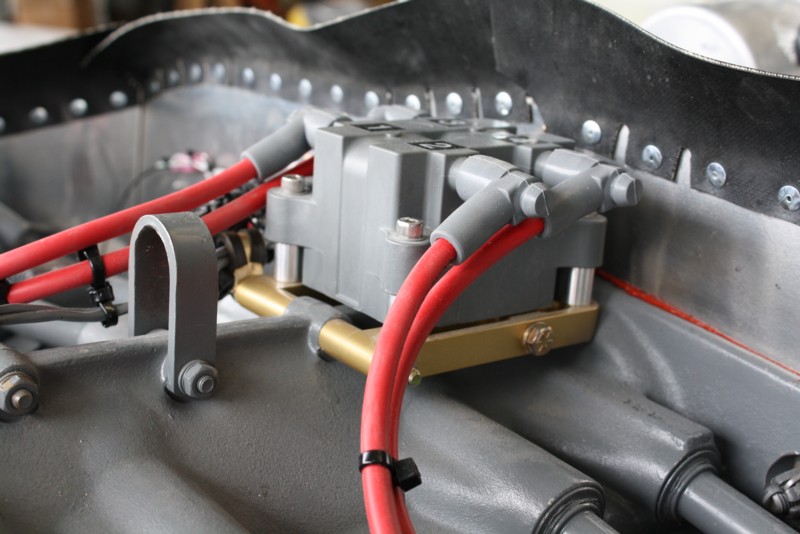

One coil pack top mounted to the engine case fires the top plugs

Flywheel timing mark was white strip of tape with black tape on either side for contrast. This made it easy to see the timing mark even in sunlight. Temporary white pointer rod projects though sheet metal at case split (top right).

Aug. 22/18

First engine start was today.

Part 1 video:
